PT100熱電阻常用計算公式及分度表

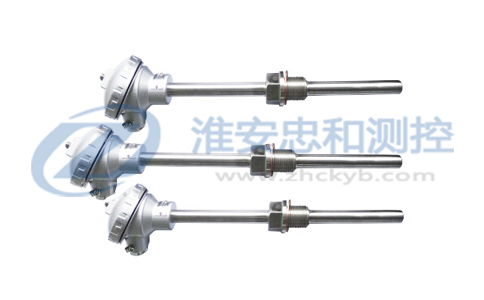

  通常熱電阻（鉑熱電阻）產品是由熱電阻測溫芯片與外保護套管,、連接件,、接線盒等組成的,，熱電阻作為測量介質溫度的溫度傳感器可以與顯示儀表,、記錄儀表,、控制儀表配套使用,，直接測量或控制生產過程中-200℃~600℃范圍內的各種介質的溫度，熱電阻屬于非標訂制產品,，可以根據用戶的不同安裝,、使用等要求進行訂制生產，選用的熱電阻Pt100芯片為進口芯片,，輸出信號為阻值信號Ω值,，我們常用的熱電阻接線有兩線制、三線制與四線制,，通常以三線制接線方式為主,，一般熱電阻PT100三線制AB=AC=100Ω時對應溫度顯示為0℃，溫度每升高1℃,，電阻阻值大概升高0.385Ω,，這樣依次類推即可知道我們實際溫度與熱電阻測量溫度的大概偏差,，所以一般只要我們操作人員在現場只要通過萬用表實際斷電拆線后直接測量熱電阻接線端子上的電阻值與工藝大概溫度判斷一下就會知道熱電阻的好壞了，要想了解更加準確的溫度,，就需要通過PT100熱電阻分度表對照查詢即可：

溫度 ℃	0	1	2	3	4	5	6	7	8	9
	電阻值（Ω）
-200	18.52
-190 -180 -170 -160 -150	22.83 27.10 31.34 35.54 39.72	22.40 26.67 30.91 35.12 39.31	21.97 26.24 30.49 34.70 38.89	21.54 25.82 30.07 34.28 38.47	21.11 25.39 29.64 33.86 38.05	20.68 24.97 29.22 33.44 37.64	20.25 24.54 28.80 33.02 37.22	19.82 24.11 28.37 32.60 36.80	19.38 23.68 27.95 32.18 36.38	18.95 23.25 27.52 31.76 35.96
-140 -130 -120 -110 -100	43.88 48.00 52.11 56.19 60.26	43.46 47.59 51.70 55.79 59.85	43.05 47.18 51.29 55.38 59.44	42.63 46.77 50.88 54.97 59.04	42.22 46.36 50.47 54.56 58.63	41.80 45.94 50.06 54.15 58.23	41.39 45.53 49.65 53.75 57.82	40.97 45.12 49.24 53.34 57.41	40.56 44.70 48.83 52.93 57.01	40.14 44.29 48.42 52.52 56.60
-90 -80 -70 -60 -50	64.30 68.33 72.33 76.33 80.31	63.90 67.92 71.93 75.93 79.91	63.49 67.52 71.53 75.53 79.51	63.09 67.12 71.13 75.13 79.11	62.68 66.72 70.73 74.73 78.72	62.28 66.31 70.33 74.33 78.32	61.88 65.91 69.93 73.93 77.92	61.47 65.51 69.53 73.53 77.52	61.07 65.11 69.13 73.13 77.12	60.66 64.70 68.73 72.73 76.73
-40 -30 -20 -10 0	84.27 88.22 92.16 96.09 100.00	83.87 87.83 91.77 95.69 99.61	83.48 87.43 91.37 95.30 99.22	83.08 87.04 90.98 94.91 98.83	82.69 86.64 90.59 94.52 98.44	82.29 86.25 90.19 94.12 98.04	81.89 85.85 89.80 93.73 97.65	81.50 85.46 89.40 93.34 97.26	81.10 85.06 89.01 92.95 96.87	80.70 84.67 88.62 92.55 96.48
0 10 20 30 40	100.00 103.90 107.79 111.67 115.54	100.39 104.29 108.18 112.06 115.93	100.78 104.68 108.57 112.45 116.31	101.17 105.07 108.96 112.83 116.70	101.56 105.46 109.35 113.22 117.08	101.95 105.85 109.73 113.61 117.47	102.34 106.24 110.12 114.00 117.86	102.73 106.63 110.51 114.38 118.24	103.12 107.02 110.90 114.77 118.63	103.51 107.40 111.29 115.15 119.01
50 60 70 80 90	119.40 123.24 127.08 130.90 134.71	119.78 123.63 127.46 131.28 135.09	120.17 124.01 127.84 131.66 135.47	120.55 124.39 128.22 132.04 135.85	120.94 124.78 128.61 132.42 136.23	121.32 125.16 128.99 132.80 136.61	121.71 125.54 129.37 133.18 136.99	122.09 125.93 129.75 133.57 137.37	122.47 126.31 130.13 133.95 137.75	122.86 126.69 130.52 134.33 138.13
100 110 120 130 140	138.51 142.29 146.07 149.83 153.58	138.88 142.67 146.44 150.21 153.96	139.26 143.05 146.82 150.58 154.33	139.64 143.43 147.20 150.96 154.71	140.02 143.80 147.57 151.33 155.08	140.40 144.18 147.95 151.71 155.46	140.78 144.56 148.33 152.08 155.83	141.16 144.94 148.70 152.46 156.20	141.54 145.31 149.08 152.83 156.58	141.91 145.69 149.46 153.21 156.95
150 160 170 180 190	157.33 161.05 164.77 168.48 172.17	157.70 161.43 165.14 168.85 172.54	158.07 161.80 165.51 169.22 172.91	158.45 162.17 165.89 169.59 173.28	158.82 162.54 166.26 169.96 173.65	159.19 162.91 166.63 170.33 174.02	159.56 163.29 167.00 170.70 174.38	159.94 163.66 167.37 171.07 174.75	160.31 164.03 167.74 171.43 175.12	160.68 164.40 168.11 171.80 175.49
200 210 220 230 240	175.86 179.53 183.19 186.84 190.47	176.22 179.89 183.55 187.20 190.84	176.59 180.26 183.92 187.56 191.20	176.96 180.63 184.28 187.93 191.56	177.33 180.99 184.65 188.29 191.92	177.69 181.36 185.01 188.66 192.29	178.06 181.72 185.38 189.02 192.65	178.43 182.09 185.74 189.38 193.01	178.79 182.46 186.11 189.75 193.37	179.16 182.82 186.47 190.11 193.74
250 260 270 280 290	194.10 197.71 201.31 204.90 208.48	194.46 198.07 201.67 205.26 208.84	194.82 198.43 202.03 205.62 209.20	195.18 198.79 202.39 205.98 209.56	195.55 199.15 202.75 206.34 209.91	195.91 199.51 203.11 206.70 210.27	196.27 199.87 203.47 207.05 210.63	196.63 200.23 203.83 207.41 210.98	196.99 200.59 204.19 207.77 211.34	197.35 200.95 204.55 208.13 211.70
300 310 320 330 340	212.05 215.61 219.15 222.68 226.21	212.41 215.96 219.51 223.04 226.56	212.76 216.32 219.86 223.39 226.91	213.12 216.67 220.21 223.74 227.26	213.48 217.03 220.57 224.09 227.61	213.83 217.38 220.92 224.45 227.96	214.19 217.74 221.27 224.80 228.31	214.54 218.09 221.63 225.15 228.66	214.90 218.44 221.98 225.50 229.02	215.25 218.80 222.33 225.85 229.37
350 360 370 380 390	229.72 233.21 236.70 240.18 243.64	230.07 233.56 237.05 240.52 243.99	230.42 233.91 237.40 240.87 244.33	230.77 234.26 237.74 241.22 244.68	231.12 234.61 238.09 241.56 245.02	231.47 234.96 238.44 241.91 245.37	231.82 235.31 238.79 242.26 245.71	232.17 235.66 239.13 242.60 246.06	232.52 236.00 239.48 242.95 246.40	232.87 236.35 239.83 243.29 246.75
400 410 420 430 440	247.09 250.53 253.96 257.38 260.78	247.44 250.88 254.30 257.72 261.12	247.78 251.22 254.65 258.06 261.46	248.13 251.56 254.99 258.40 261.80	248.47 251.91 255.33 258.74 262.14	248.81 252.25 255.67 259.08 262.48	249.16 252.59 256.01 259.42 262.82	249.50 252.93 256.35 259.76 263.16	245.85 253.28 256.70 260.10 263.50	250.19 253.62 257.04 260.44 263.84
450 460 470 480 490	264.18 267.56 270.93 274.29 277.64	264.52 267.90 271.27 274.63 277.98	264.86 268.24 271.61 274.96 278.31	265.20 268.57 271.94 275.30 278.64	265.53 268.91 272.28 275.63 278.98	265.87 269.25 272.61 275.97 279.31	266.21 269.59 272.95 276.30 279.64	266.55 269.92 273.29 276.64 279.98	266.89 270.26 273.62 276.97 280.31	267.22 270.60 273.96 277.31 280.64
500 510 520 530 540	280.98 284.30 287.62 290.92 294.21	281.31 284.63 287.95 291.25 294.54	281.64 284.97 288.28 291.58 294.86	281.98 285.30 288.61 291.91 295.19	282.31 285.63 288.94 292.24 295.52	282.64 285.96 289.27 292.56 295.85	282.97 286.29 289.60 292.89 296.18	283.31 286.62 289.93 293.22 296.50	283.64 286.85 290.26 293.55 296.83	283.97 287.29 290.59 293.88 297.16
550 560 570 580 590	297.49 300.75 304.01 307.25 310.49	297.81 301.08 304.34 307.58 310.81	298.14 301.41 304.66 307.90 311.13	298.47 301.73 304.98 308.23 311.45	298.80 302.06 305.31 308.55 311.78	299.12 302.38 305.63 308.87 312.10	299.45 302.71 305.96 309.20 312.42	299.78 303.03 306.28 309.52 312.74	300.10 303.36 306.61 309.84 313.06	300.43 303.69 306.93 310.16 313.39
600 610 620 630 640	313.71 316.92 320.12 323.30 326.48	314.03 317.24 320.43 323.62 326.79	314.35 317.56 320.75 323.94 327.11	314.67 317.88 321.07 324.26 327.43	314.99 318.20 321.39 324.57 327.74	315.31 318.52 321.71 324.89 328.06	315.64 318.84 322.03 325.21 328.38	315.96 319.16 322.35 325.53 328.69	316.28 319.48 322.67 325.84 329.01	316.60 319.80 322.98 326.16 329.32
650 660	329.64 332.79	329.96	330.27	330.59	330.90	331.22	331.53	331.85	332.16	332.48
